1. Industrial Equipment Monitoring

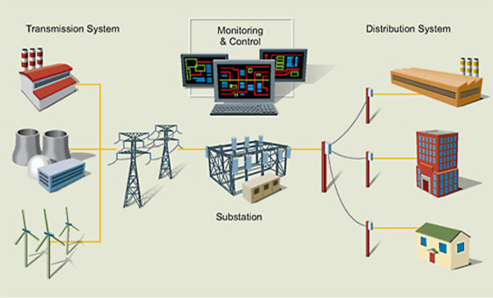

Industrial Equipment Monitoring is exemplified using a network of Distribution Transformers:

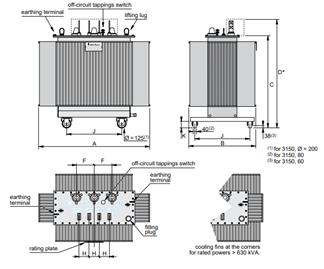

100 KVA Distribution Transformer
transformer

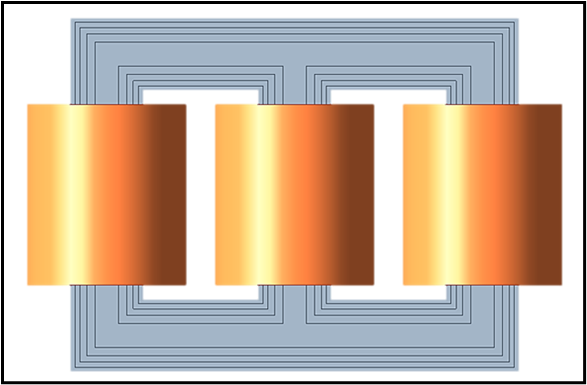

Transformer Geometry.
transformer

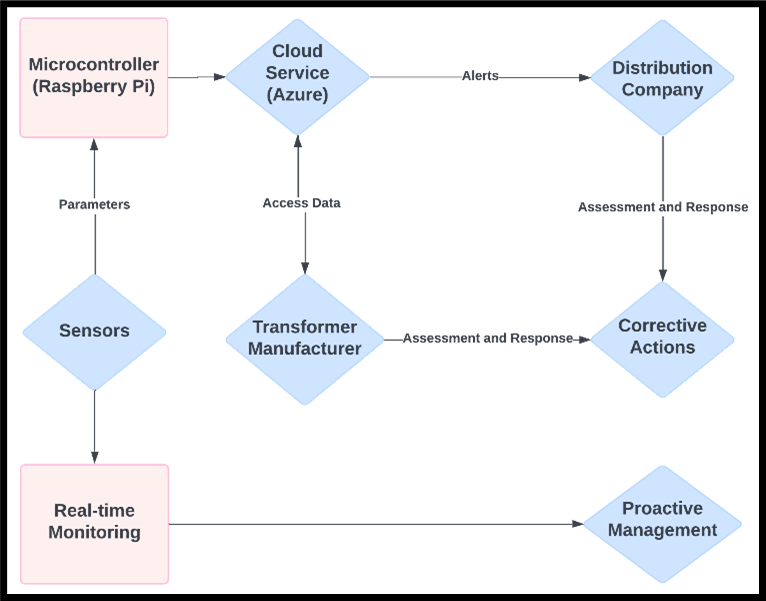

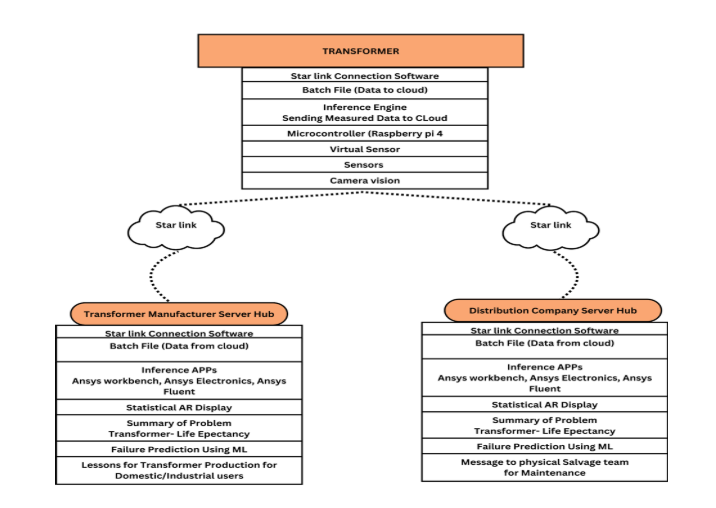

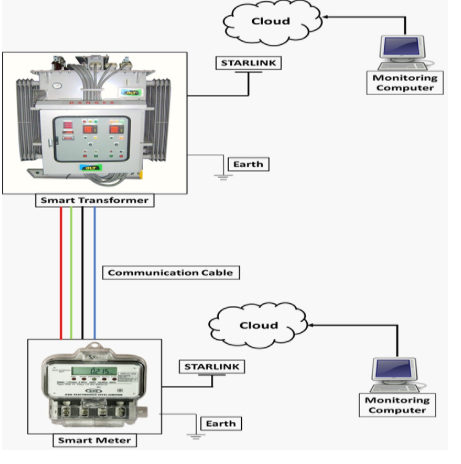

General Monitoring Flow Diagram
No. Parameters Value
1 Apparent power 100kVA
2 Voltage 400/400 Yy-400/230 Yd
3 Winding conductors 3.2 mm copper wire class H insulation
4 Primary winding turns 260
5 Secondary winding turns 10
6 Primary full load current 5.249 A
7 Secondary full load current 139 A
8 Magnetic core Cold laminated steel 0.86W/kg 0.3mm
9 Winding insulation Tercott CFTM
10 Voltage per turn 1.26 V
Transformer Specifications
transformer
Transformer Core
transformer

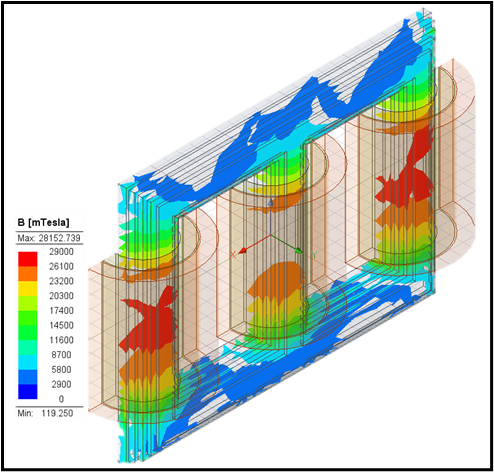

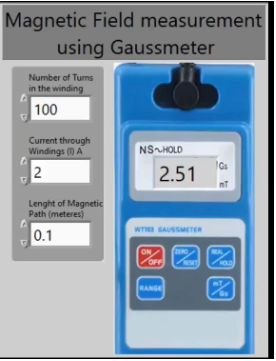

Instantaneous Magnetic Flux Density in transformer core
transformer

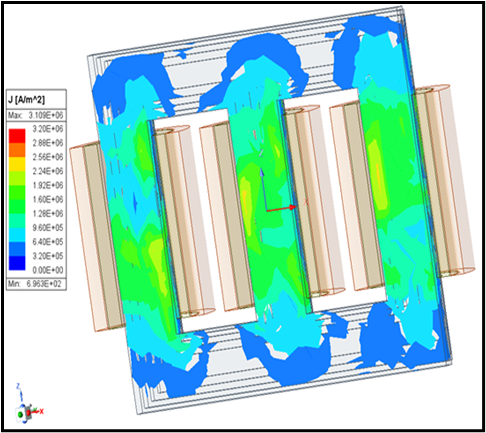

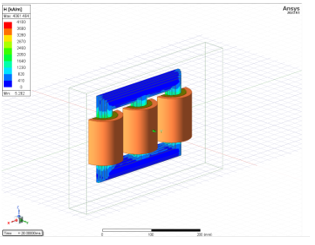

Instantaneous magnetic Flux Density across core cross section
transformer

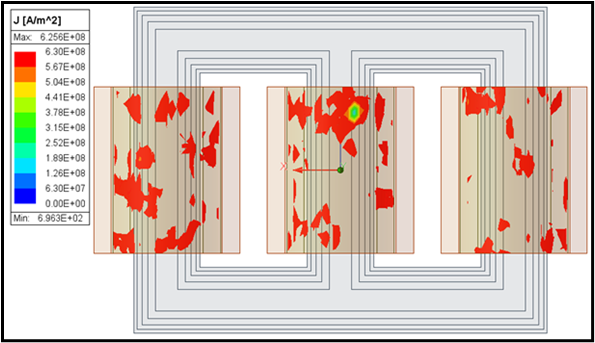

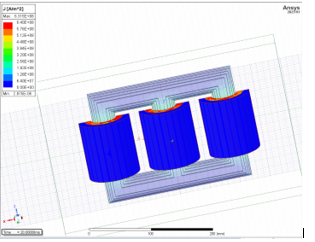

Instantaneous electric field density in Windings
transformer

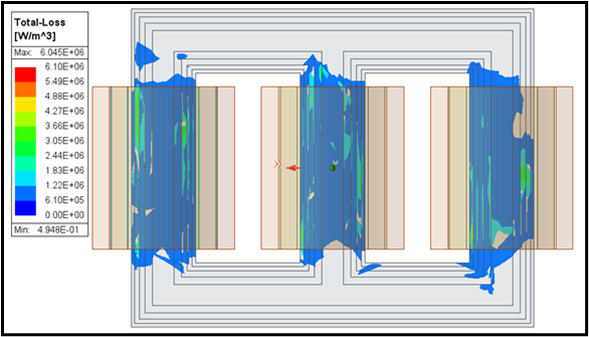

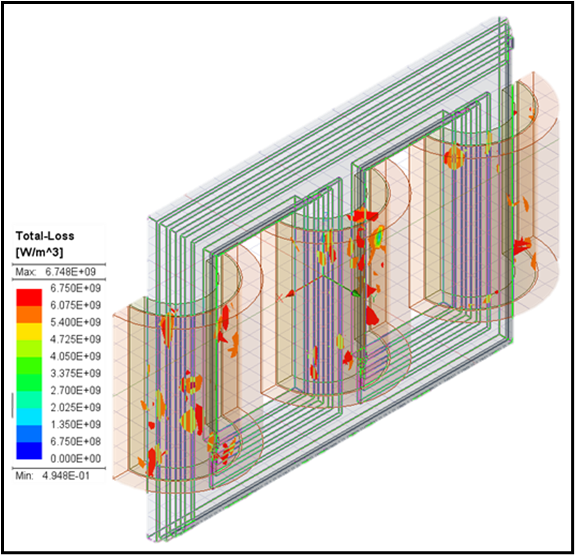

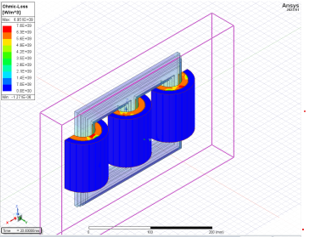

Total instantaneous magnetic field loss in Transformer Core
transformer
Total instantaneous Magnetic flux loss in Transformer Coils
transformer

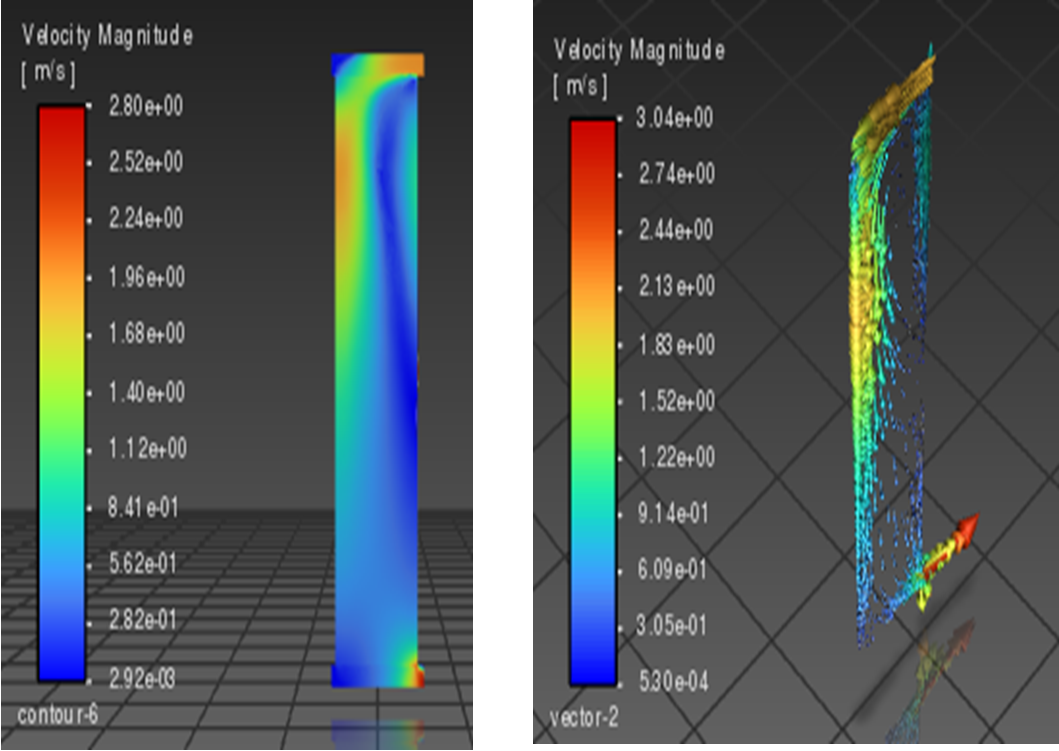

Contours of coolant velocity
transformer

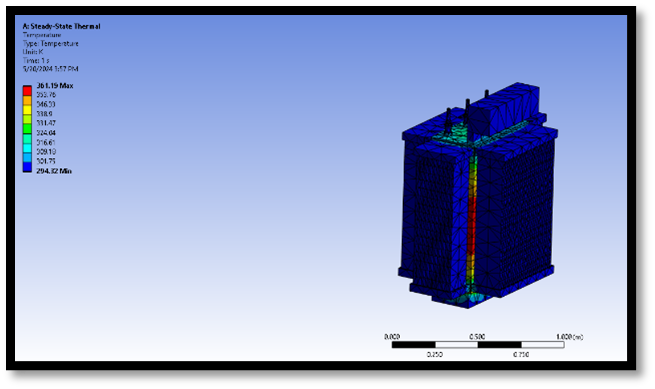

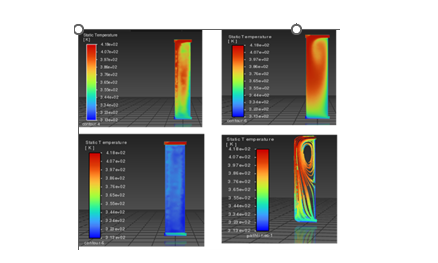

Temperature (oK) Monitoring
transformer
Directional Heat Flux (units W/m2)
transformer

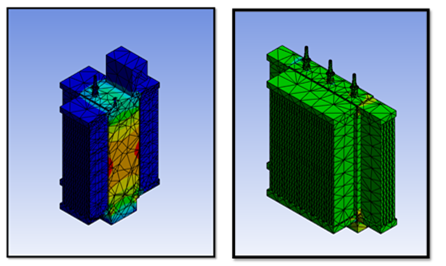

Section View (a) Temperature. (b) Heat Flux

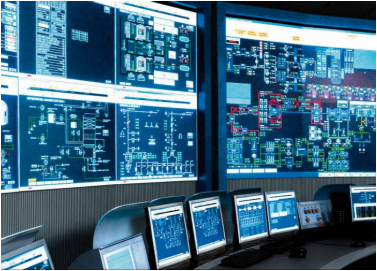

The monitoring scheme uses Sensors Data sent to Servers (Distribution Company and Transformer Manufacturer) using IIoT and Cloud. The servers use GPUs to display the status of each transformer using Quality Assurance principles involving Augmented Reality (AR) and Data Analytics. The problematic transformers can be tracked and using AI tools their behavior can be predicted for physical salvage teams waiting to ratify any eventuality thus guaranteeing excellent service to customers. Other engineering equipment can also be monitored collectively in this manner.
